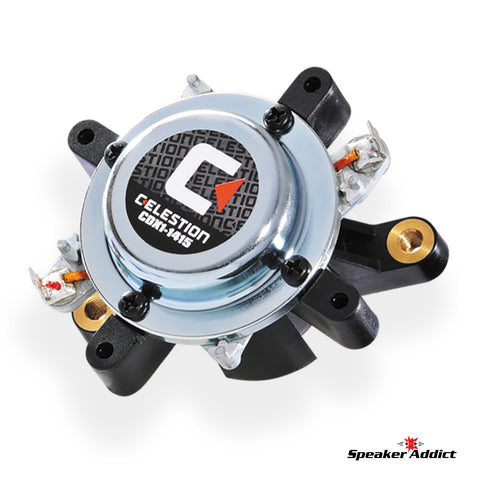

Celestion CDX1-1415 Compact Neo magnet 1 Inch Bolt On Compression Driver Tweeter

  • Sale
  • $ 69.99
  • Regular price $ 89.99


Celestion CDX1-1415 Neo 1" Compression Horn Driver 20W - open-box - samples



The Celestion CDX1-1415 HF driver uses a neodymium motor structure and the company's vast design experience to great effect. Despite its small size, the CDX1-1415 provides all the smooth, clear high frequency output a pro audio loudspeaker system could need.

  • 2,500Hz recommended min. crossover freq (12dB/oct)
  • Aluminium diaphragm with elastomer surround
  • Copper inductance sleeve for improved HF performance

General Specifications

Power rating1
20Wrms
Continuous power rating2
40W
Nominal impedance
Sensitivity3
104dB
Frequency range
2000-20,000Hz
Recommended min. crossover (12dB/oct)
2,500Hz
Voice coil diameter
35mm/1.4in
Voice coil material
Copper clad aluminium
Magnet type
Neodymium
Diaphragm material
Aluminium
Surround material
Elastomer

Mounting Information

Maximum width
90mm/3.5in
Depth
57mm/2.2in
Weight
0.25kg/0.6lb
Fitting
Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit
25.0mm/1in

Packed Dimensions & Weight

Single pack size W x D x H
90mm x 90mm x 60mm
/3.5in x 3.5in x 2.4in
Single pack weight
0.5kg/1.1lb
