Celestion CDX1-1425 Neo 1-Inch Bolt On Compression Driver Tweeter fits QSC HPR

  • Sale
  • $ 75.00
  • Regular price $ 99.99

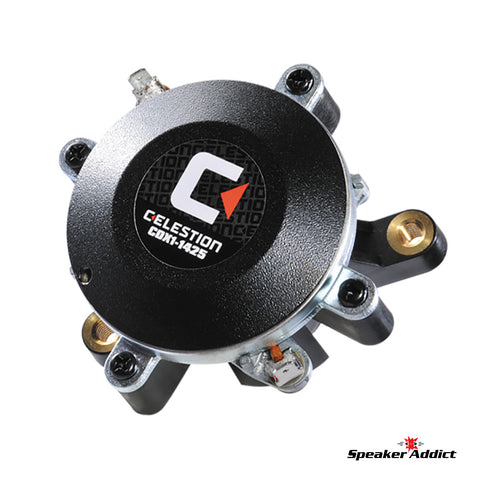

Celestion CDX1-1425 Neo 1" Compression Horn Driver 25W

The Celestion CDX1-1425 is a leading example of the emerging class of ultra-compact neodymium high frequency drivers. The CDX1-1425's minimal size makes it ideal for the spacing constraints of professional line array systems as well as very small 2-way and 3-way loudspeakers.

  • 2,500Hz recommended min. crossover freq (12dB/oct)
  • Aluminium diaphragm with elastomer surround
  • Copper inductance sleeve for improved HF performance

General Specifications

Power rating1
25Wrms
Continuous power rating2
50W
Nominal impedance
Sensitivity3
108dB
Frequency range
2000-20,000Hz
Recommended min. crossover (12dB/oct)
2,500Hz
Voice coil diameter
35mm/1.4in
Voice coil material
Copper clad aluminium
Magnet type
Neodymium
Diaphragm material
Aluminium
Surround material
Elastomer

Mounting Information

Maximum width
90mm/3.5in
Depth
58mm/2.3in
Weight
0.39kg/0.9lb
Fitting
Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit
25.0mm/1in

Packed Dimensions & Weight

Single pack size W x D x H
90mm x 90mm x 60mm
/3.5in x 3.5in x 2.4in
Single pack weight
0.5kg/1.1lb
