Peavey 70777107 DUAL DRIVER 5"x11" PIEZO HORN TWEETER for KB300 112H 115H & more

  • Sale
  • $ 33.99
  • Regular price $ 39.99

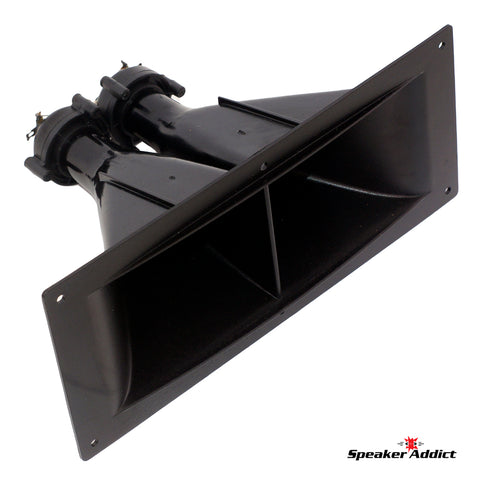

BRAND NEW (NOS) PEAVEY GENUINE CTS MADE DUAL DRIVER 5"x11" PIEZO HORN TWEETER


Original 70777107 CTS made Peavey dual piezo horns. Don't settle for the knockoffs with honky midrange, weak highs and improper level matching due to the lack of the resistors that they should have attached like these. Your oldschool cabs will sound good as new with these genuine originals we recently acquired direct from peavey's warranty stock. This horn can be found in Peavey models: 110, 110H, 112, 112H, 112HS, 112F, 112CM, 110/112 Criterion, 115, 115H, 115HS, 1210HS, 210W, 2420H, Acoustic Wave, Austin, Criterion, ED-100, ED100, ED 100, HKS-12, KB-300, KB300, KB 300, PR-1200, PR1200, PR 1200, Reno, T-1000, T1000, T 1000, and many more!


Built in resistors for improved power handling and good level matching with typical general purpose pro woofers.  No crossovers required - NOTE, use the (+) from 1 driver on one side and the (-) from the other driver on the other side for proper performance.  This allows the crossing resistors work as they are supposed to.  If you connect to both the terminals from a driver on 1 side it will not work as intended


DIMENSIONS: 11 1/4"(L) X 5 1/4"(W) X 6 3/4"(D) MOUNTING: 4 1/6" X 10 1/4" POWER HANDLING: 200 WATTS FREQUENCY RESPONSE: 3000 - 30,000 HZ SENSITIVITY: 96 db (1 W / 1 M) DISPERSION: 120 °(H) X 30° (V)

This is the genuine original CTS made version of this horn. No new Piezo's can touch the sound quality or power handling of the original Motorola then later CTS made units. These require a slightly larger mounting hole than the newer version with the thick front trim around the screw holes. This will only drop into the hole for an older version CTS. To install in cabinets using the newer version you will need to open up the hole slightly for it to fit but it should provide better performance.
