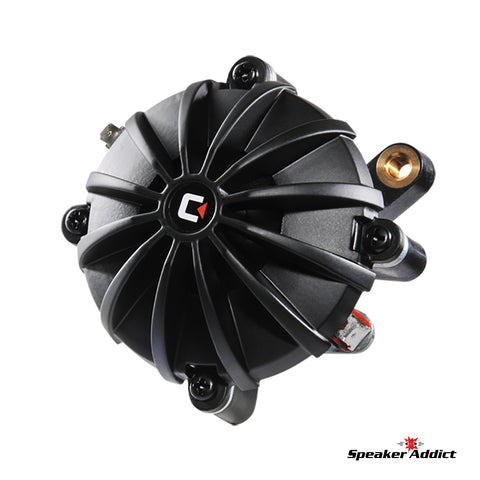

Celestion CDX1-1430 Neo 1" Compression Horn Driver 50W
Celestion's experience and high-tech engineering have produced the CDX1-1430, a small yet efficient neodymium HF driver. It is perfect for applications that require excellent fidelity and high output, but must achieve it in limited cabinet space. Line arrays and compact 2-way and 3-way loudspeaker systems benefit from the CDX1-1430's very favorable performance/size ratio.
- 2,500Hz recommended min. crossover freq (12dB/oct)
- Aluminium diaphragm with elastomer surround
- Copper Inductance sleeve for improved HF performance
General Specifications
Power rating1
50Wrms
Continuous power rating2
100W
Nominal impedance
8Ω
Sensitivity3
108dB
Frequency range
2000-20,000Hz
Recommended min. crossover (12dB/oct)
2,500Hz
Voice coil diameter
35mm/1.4in
Voice coil material
Copper clad aluminium
Magnet type
Neodymium
Diaphragm material
Aluminium
Surround material
Elastomer
Mounting Information
Maximum width
90mm/3.5in
Depth
58mm/2.3in
Weight
0.47kg/1.0lb
Fitting
Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit
25.0mm/1in
Packed Dimensions & Weight
Single pack size W x D x H
90mm x 90mm x 60mm
/3.5in x 3.5in x 2.4in
Single pack weight
0.6kg/1.3lb
