Faital PRO 12RS1066 12 Inch Long Excursion Neo Subwoofer 4inch VC 2000 Watt

  • Sale
  • Regular price $ 426.00


FaitalPro 12RS1066 Ultra High Power 12" 8ohm Pro Audio Subwoofer

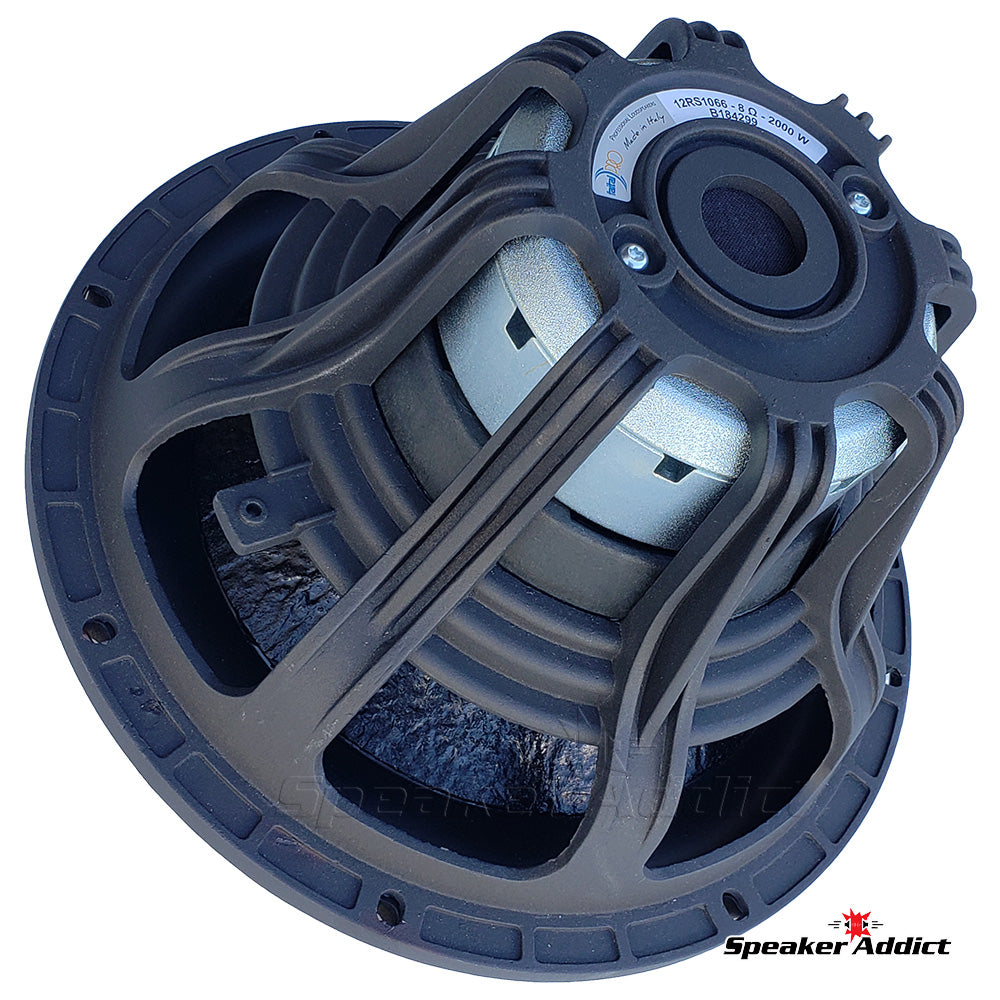

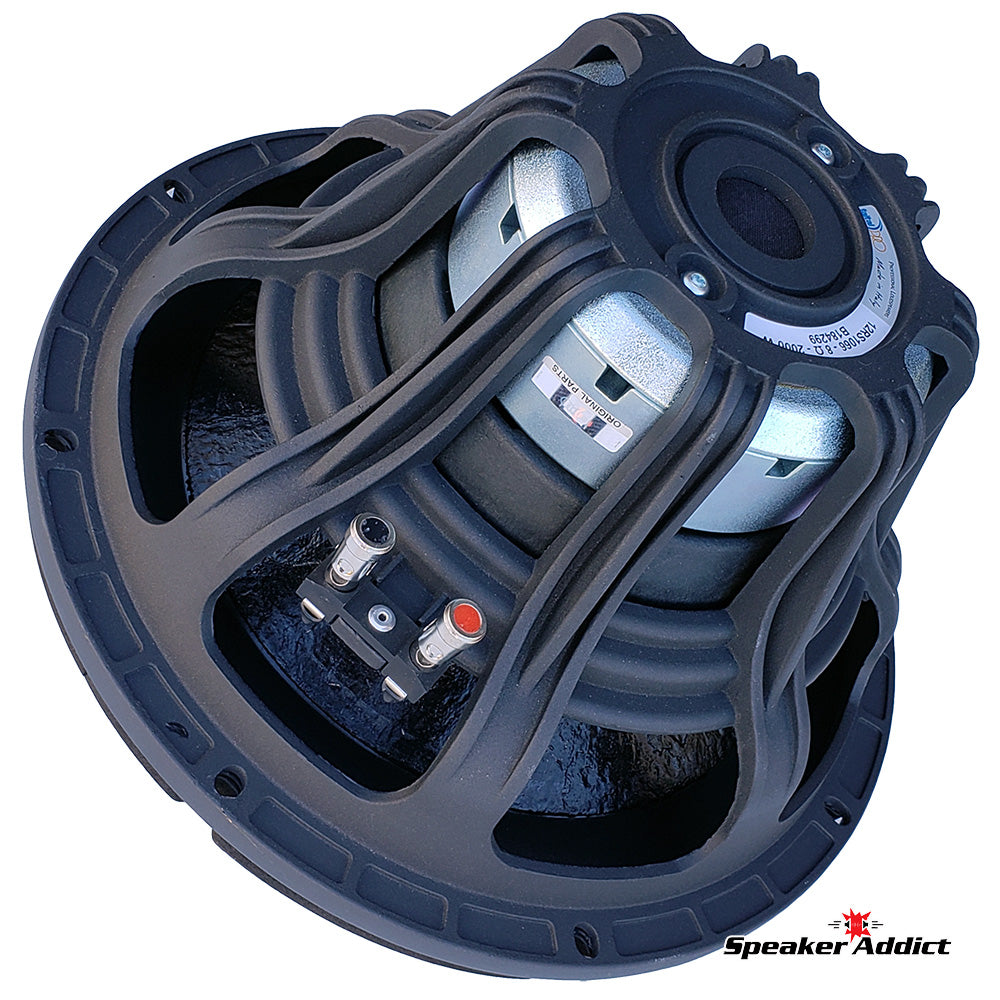

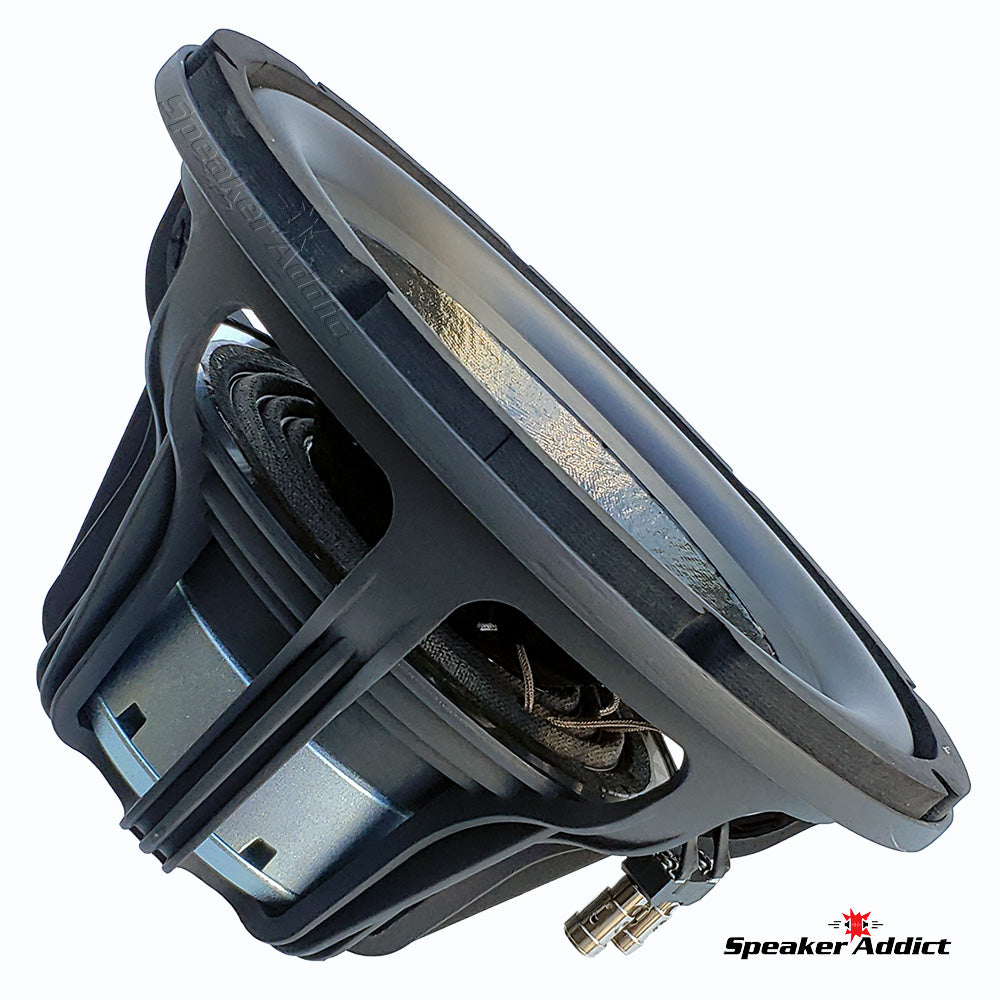

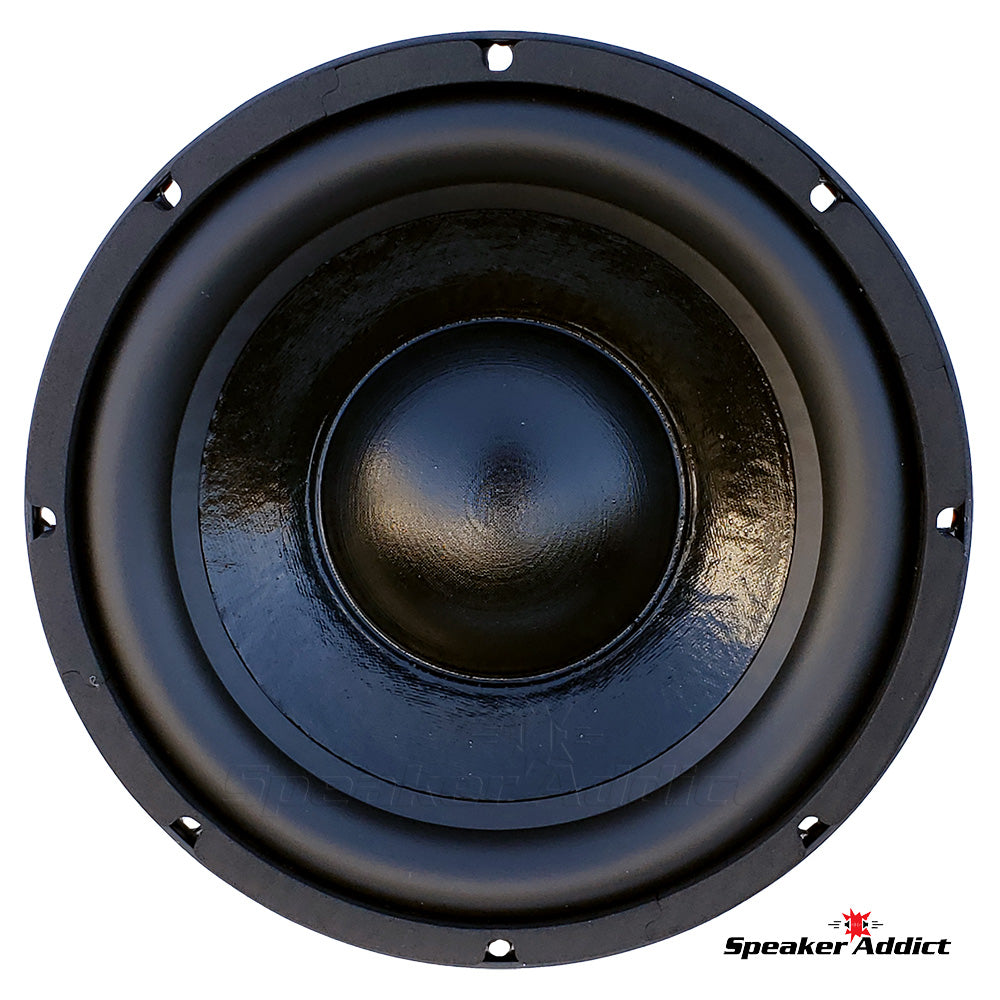

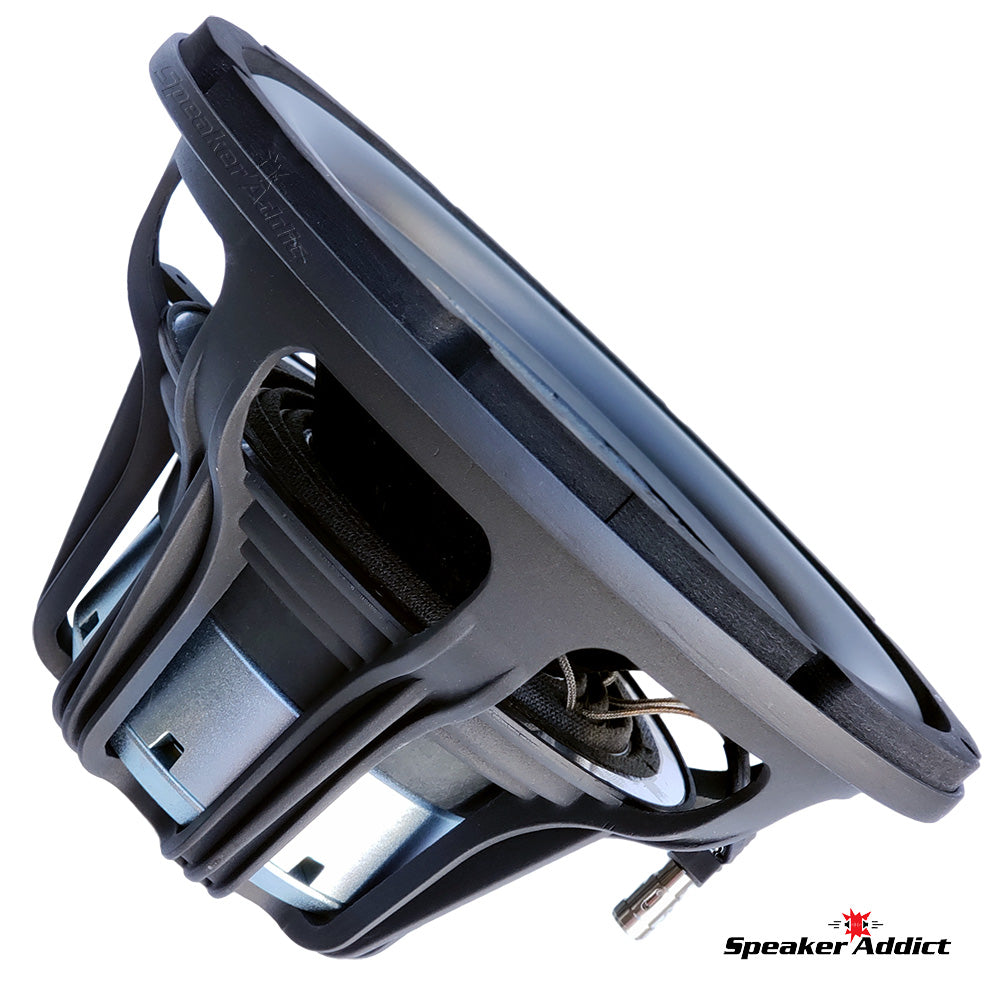

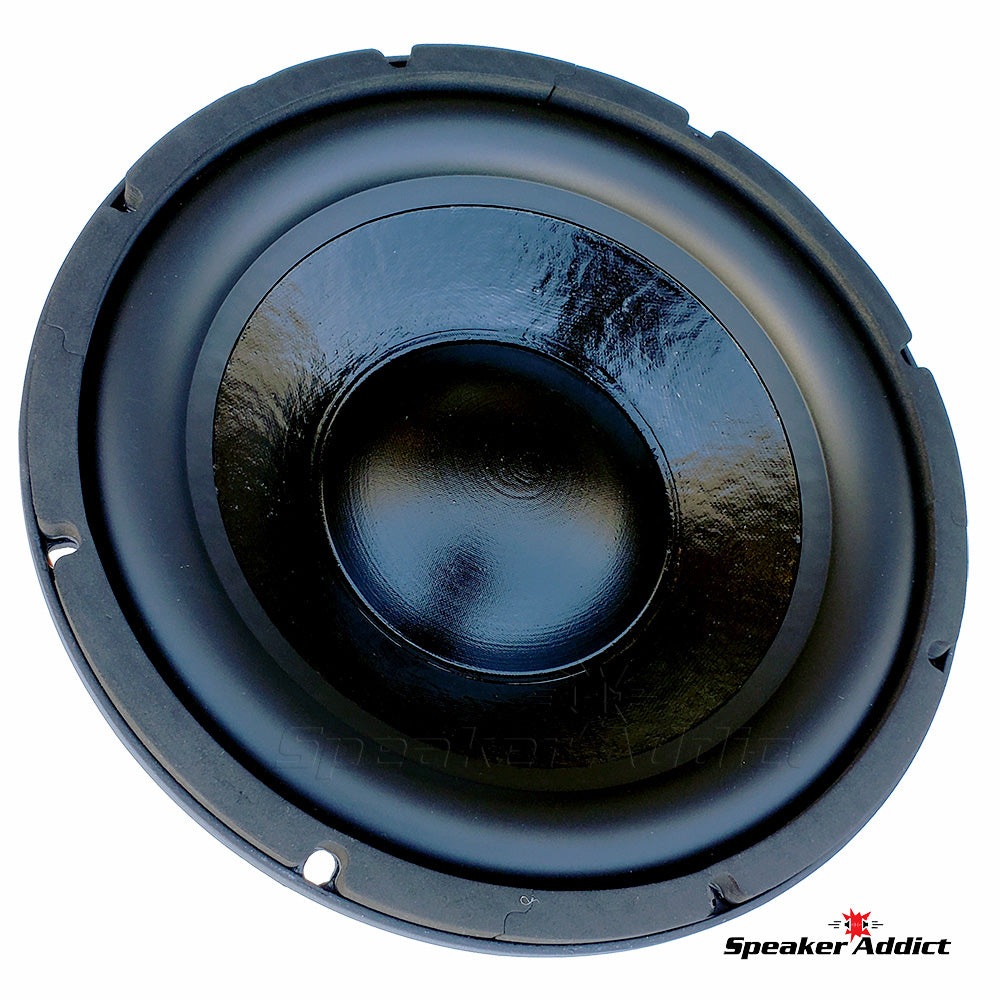

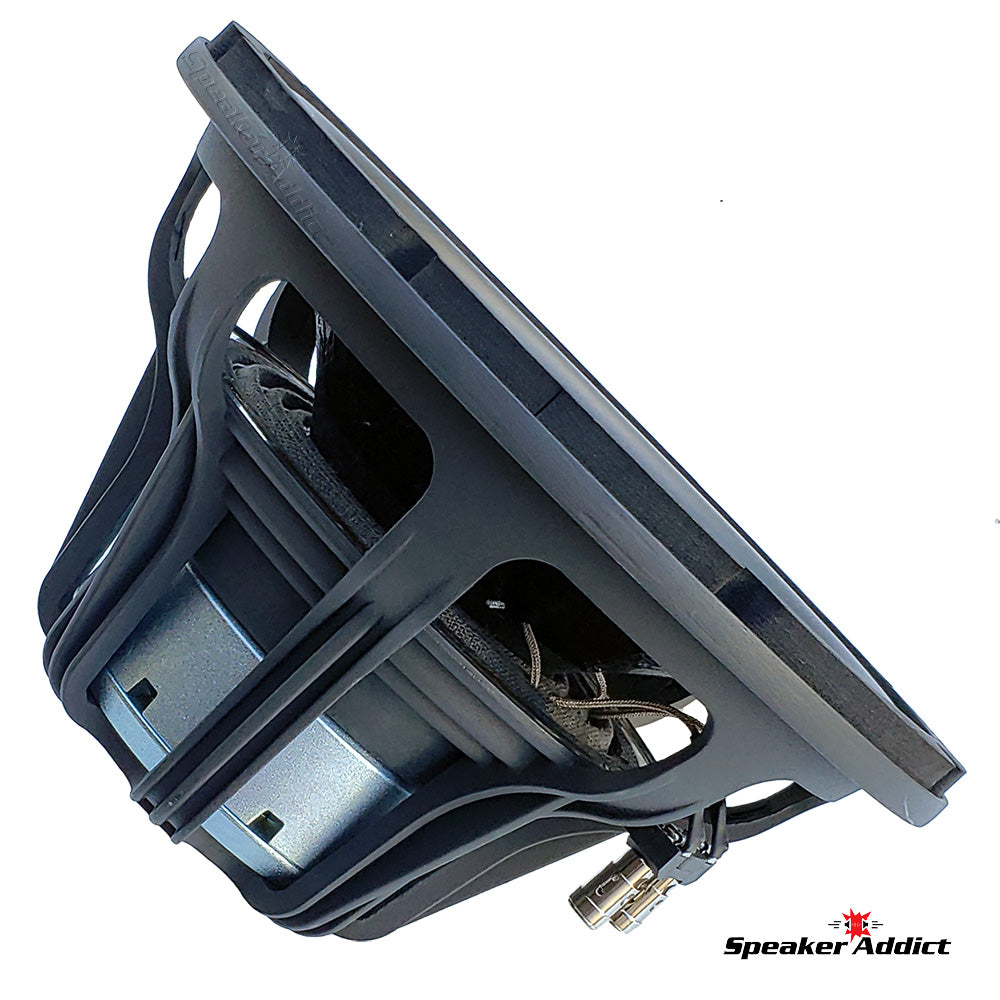

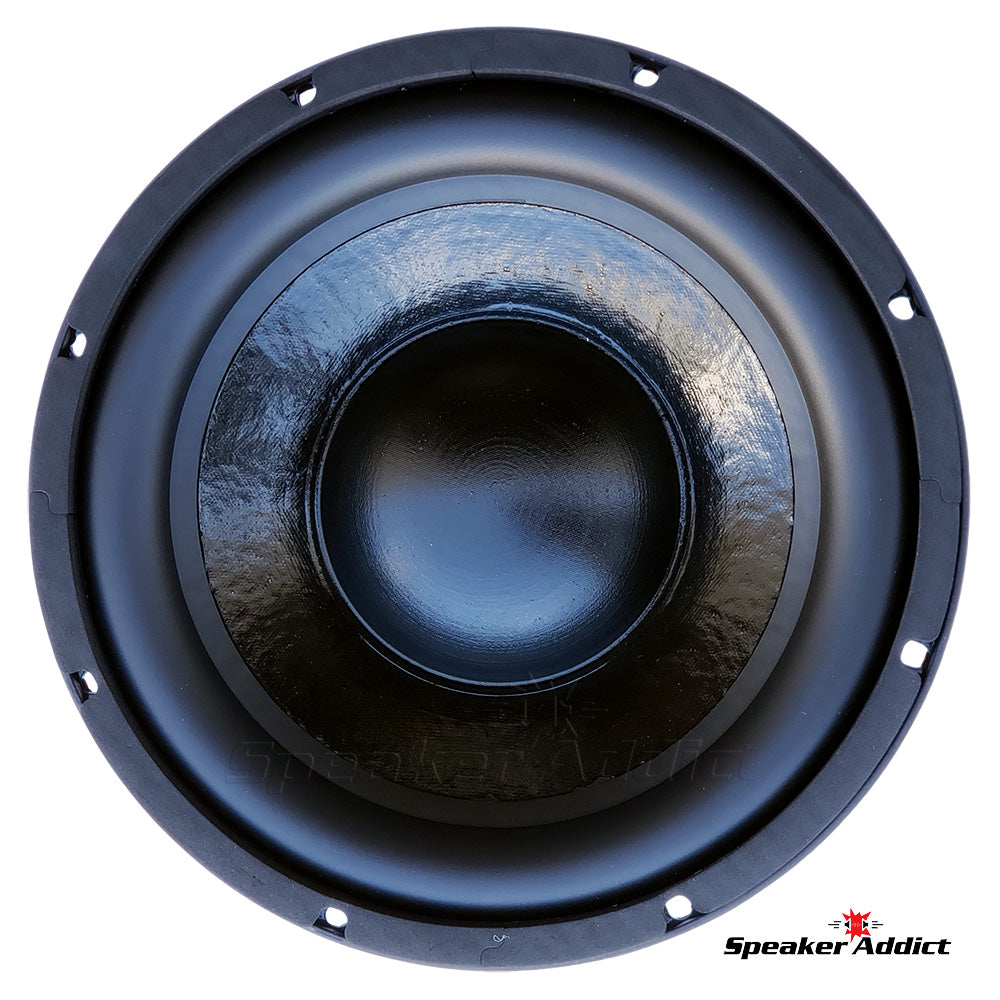

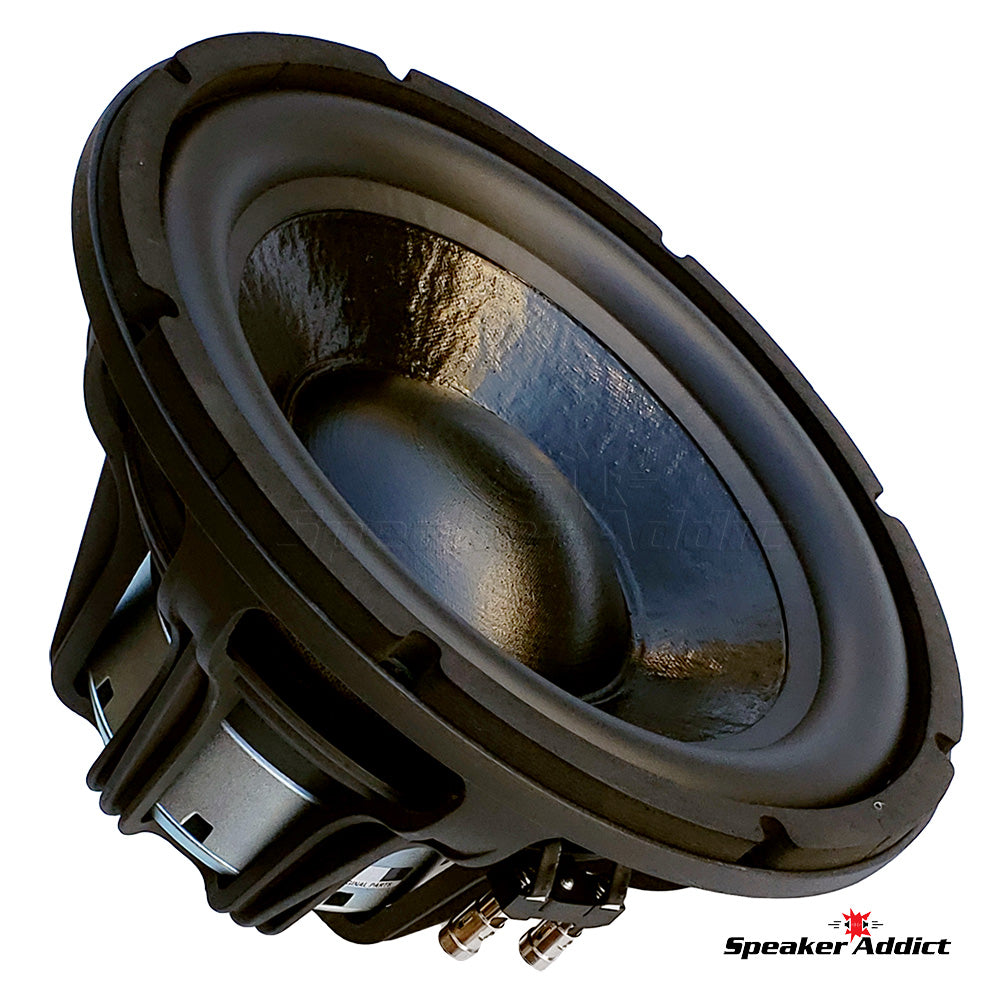

The stunning 12RS1066 by High End Italian loudspeaker Mfg FaitalPRO is not just beautiful to look at with it's gorgeous custom one piece aluminum basket, laminated and reinforced weatherproof cone and rubber surround, It is also a world class performer.  This monster boasts a 4" all copper voice coil capable of handling 1000 watts RMS power all day long with peak power handling of 2000 watts.  Very long excursion of +/- 12.45 mm and very high motor strength (Bl) of 24.8 N/A means this thing can beat you senseless as well as go way down low all while retaining extreme accuracy and dynamics.  a large vented neodymium ring magnet and aluminum demodulation ring minimize distortion and power compression.  This woofer works extremely well in long folded horn designs.  This is the best replacement you can find for the long EAW bass horns for example.  Re-load those cabinet with this monster and it's like doubling your cabinets by just changing the drivers and you also won't be constantly reconing anymore

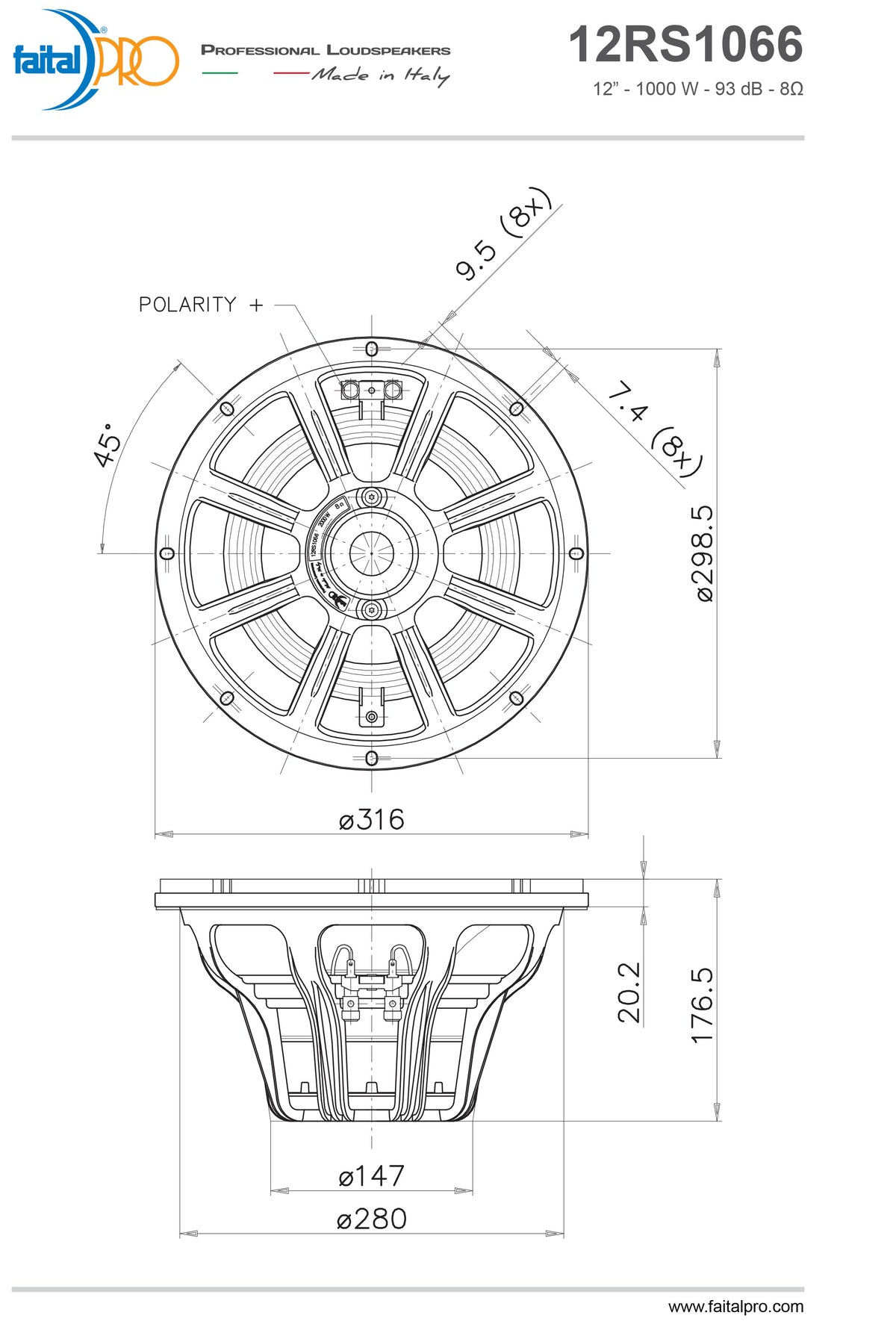

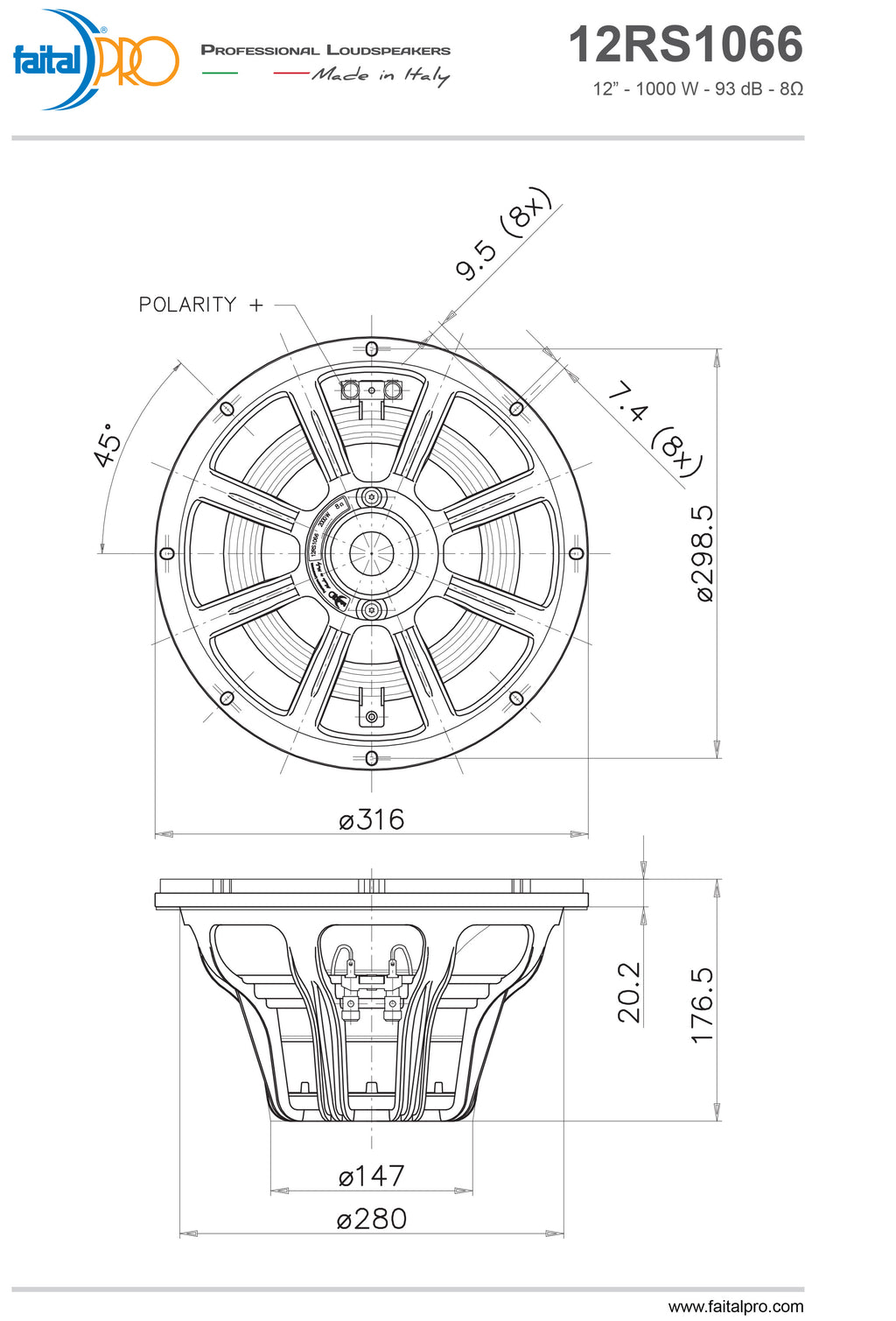

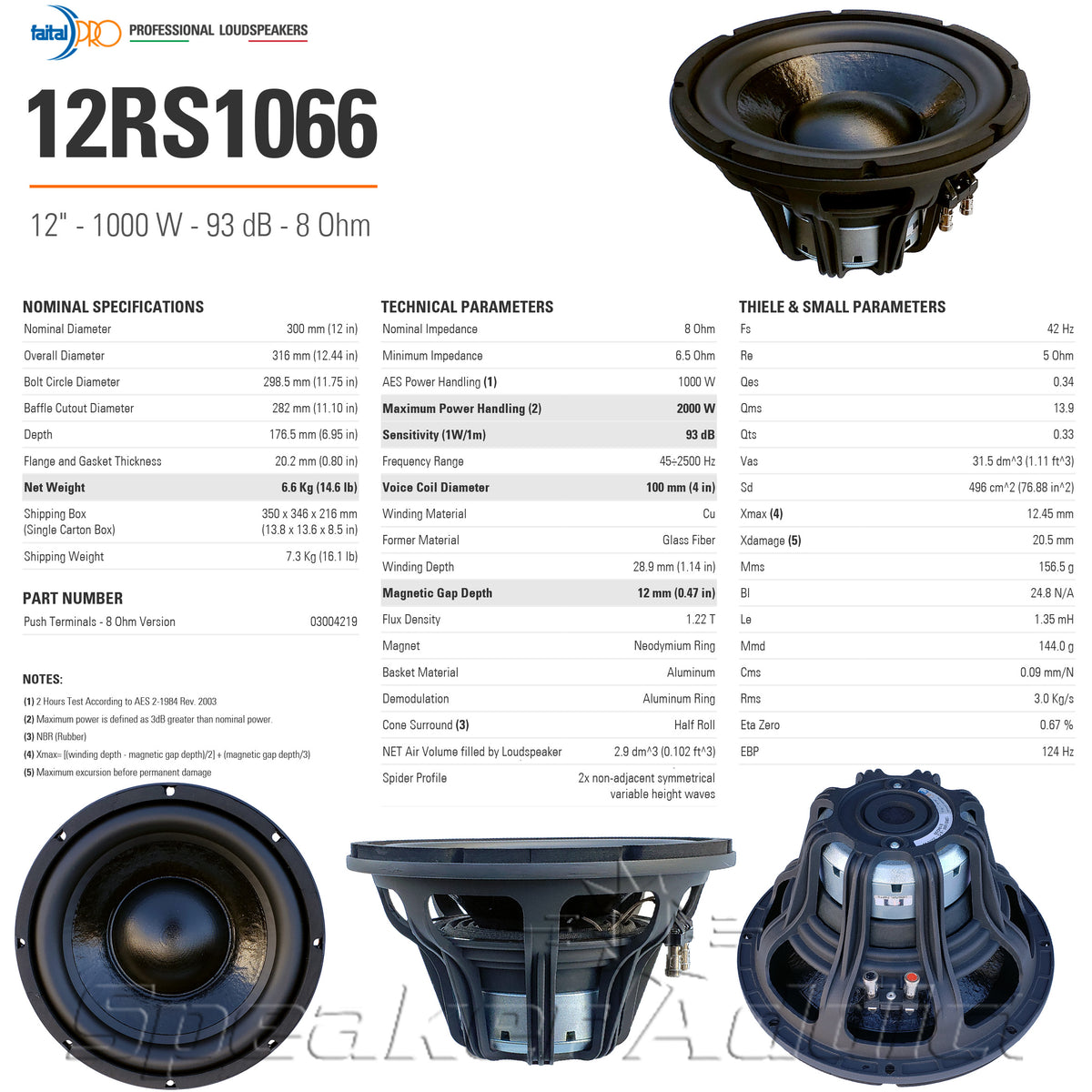

NOMINAL SPECIFICATIONS
Nominal Diameter 300 mm (12 in)
Overall Diameter 316 mm (12.44 in)
Bolt Circle Diameter 298.5 mm (11.75 in)
Baffle Cutout Diameter 282 mm (11.10 in)
Depth 176.5 mm (6.95 in)
Flange and Gasket Thickness 20.2 mm (0.80 in)
Net Weight 6.6 Kg (14.6 lb)
Shipping Box
(Single Carton Box)
350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in)
Shipping Weight 7.3 Kg (16.1 lb)


TECHNICAL PARAMETERS
Nominal Impedance 8 Ohm
Minimum Impedance 6.5 Ohm
AES Power Handling (1) 1000 W
Maximum Power Handling (2) 2000 W
Sensitivity (1W/1m) 93 dB
Frequency Range 45÷2500 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 28.9 mm (1.14 in)
Magnetic Gap Depth 12 mm (0.47 in)
Flux Density 1.22 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Half Roll
NET Air Volume filled by Loudspeaker 2.9 dm^3 (0.102 ft^3)
Spider Profile 2x non-adjacent symmetrical variable height waves
THIELE AND SMALL PARAMETERS
Fs 42 Hz
Re 5 Ohm
Qes 0.34
Qms 13.9
Qts 0.33
Vas 31.5 dm^3 (1.11 ft^3)
Sd 496 cm^2 (76.88 in^2)
Xmax (4) 12.45 mm
Xdamage (5) 20.5 mm
Mms 156.5 g
Bl 24.8 N/A
Le 1.35 mH
Mmd 144.0 g
Cms 0.09 mm/N
Rms 3.0 Kg/s
Eta Zero 0.67 %
EBP 124 Hz


PART NUMBER (P/N)
Push Terminals - 8 Ohm Version 03004219



NOTES:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) NBR (Rubber)
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
