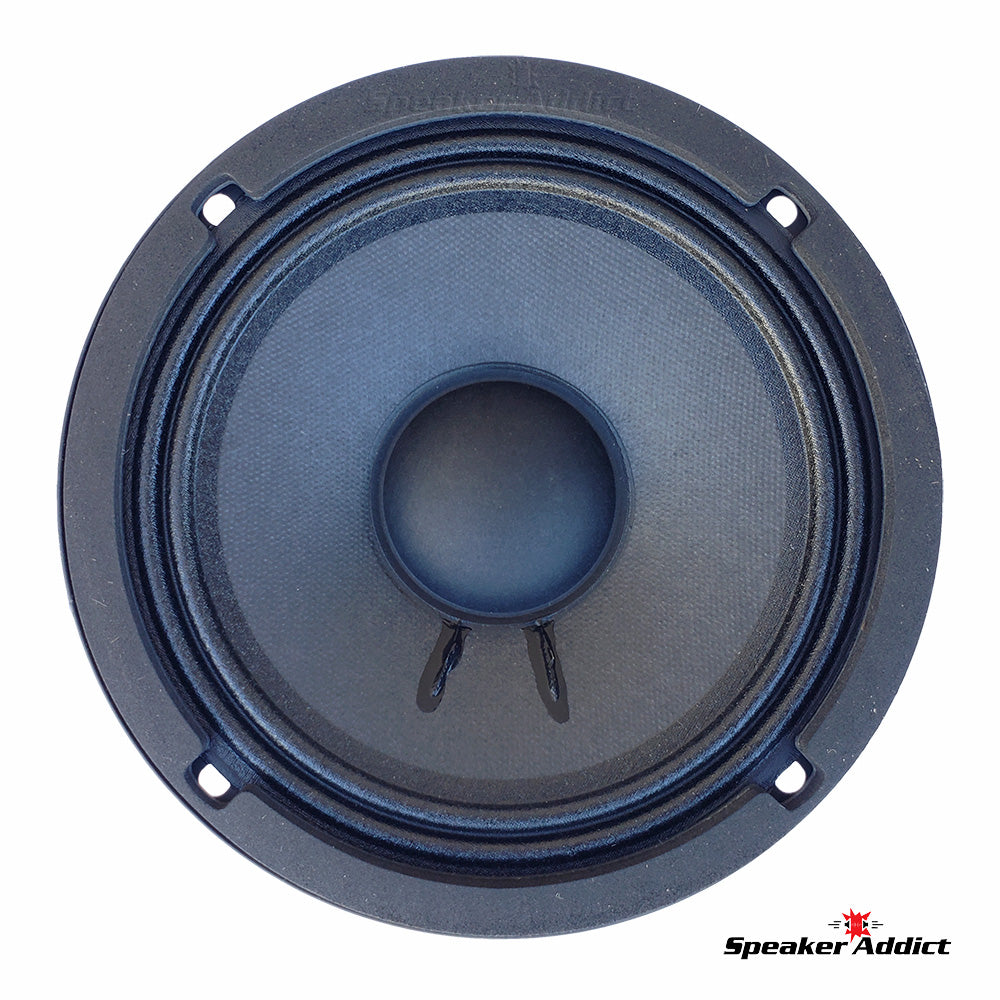

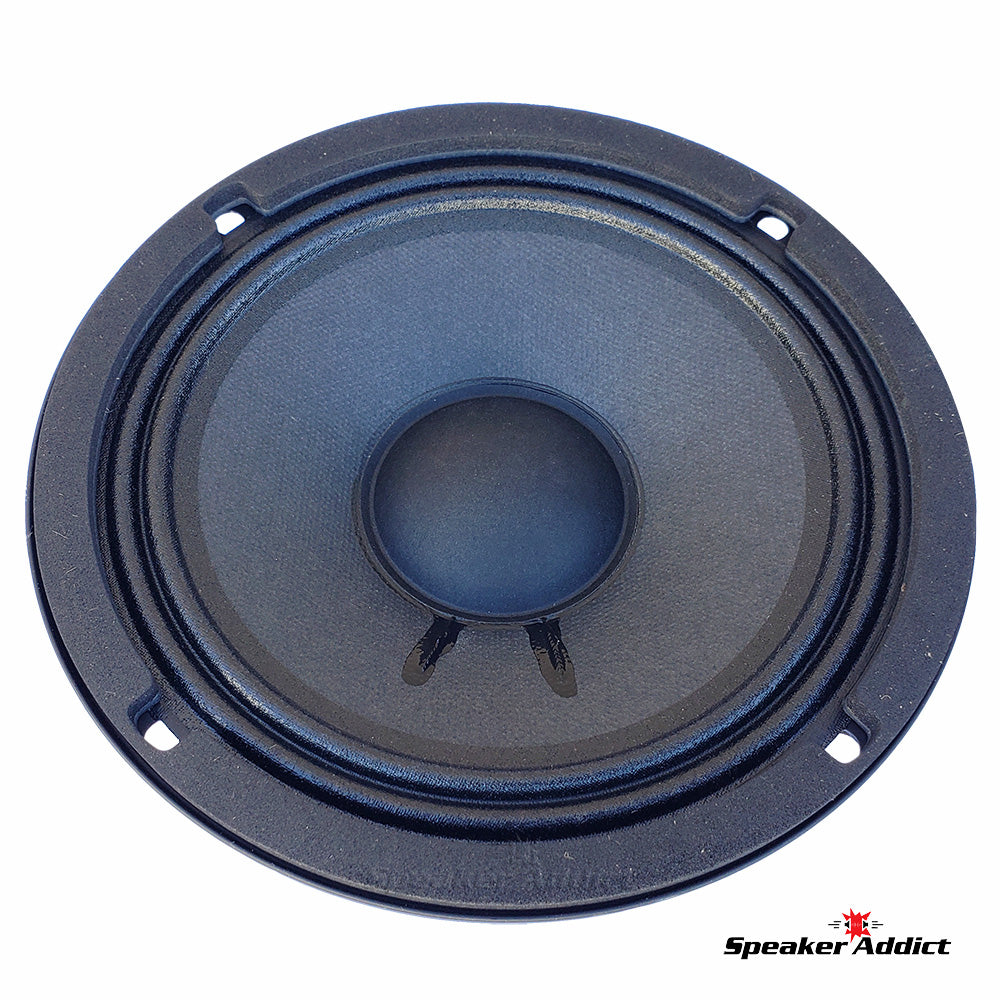

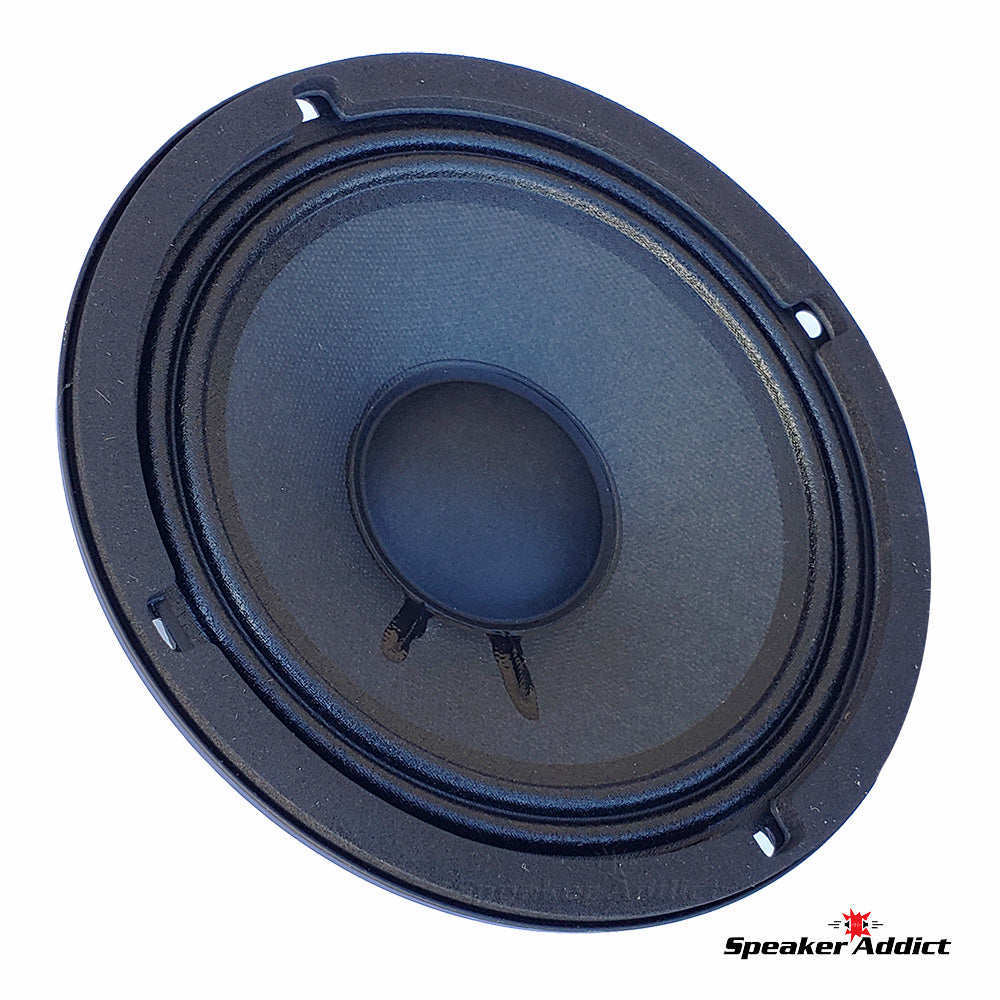

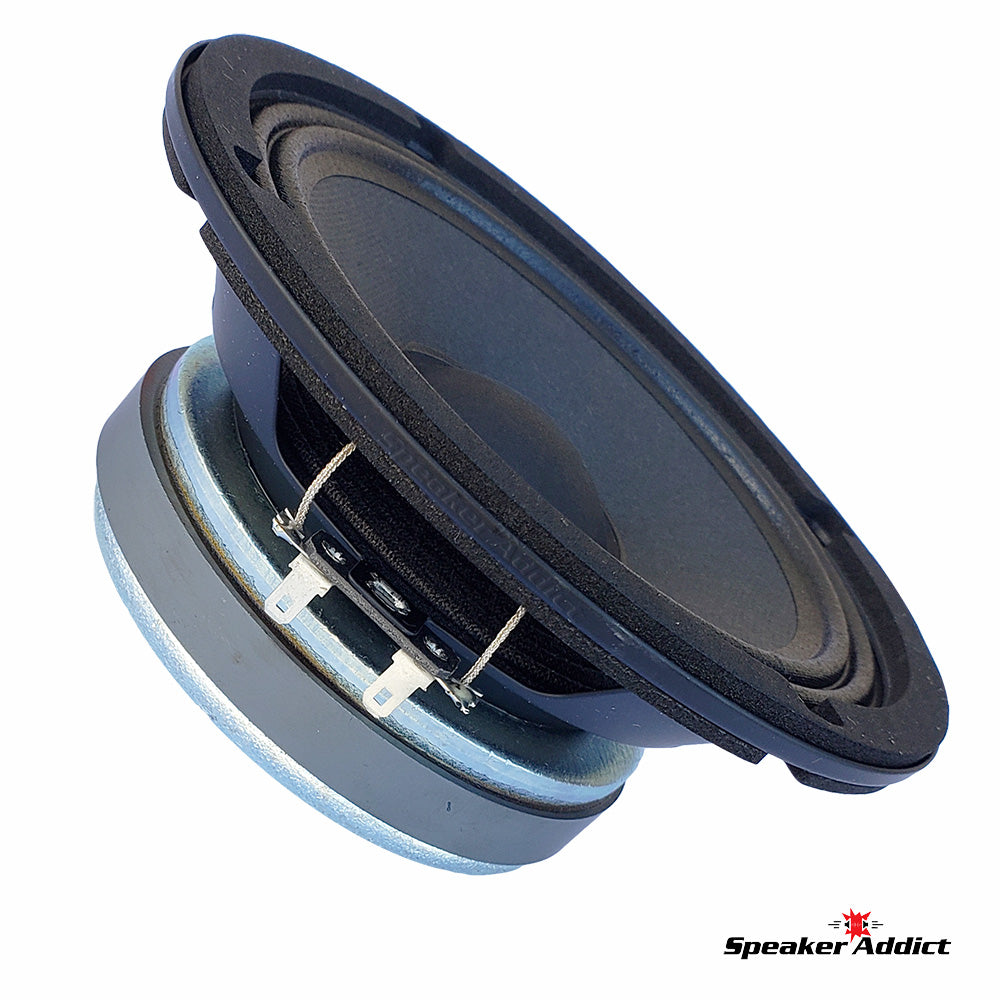

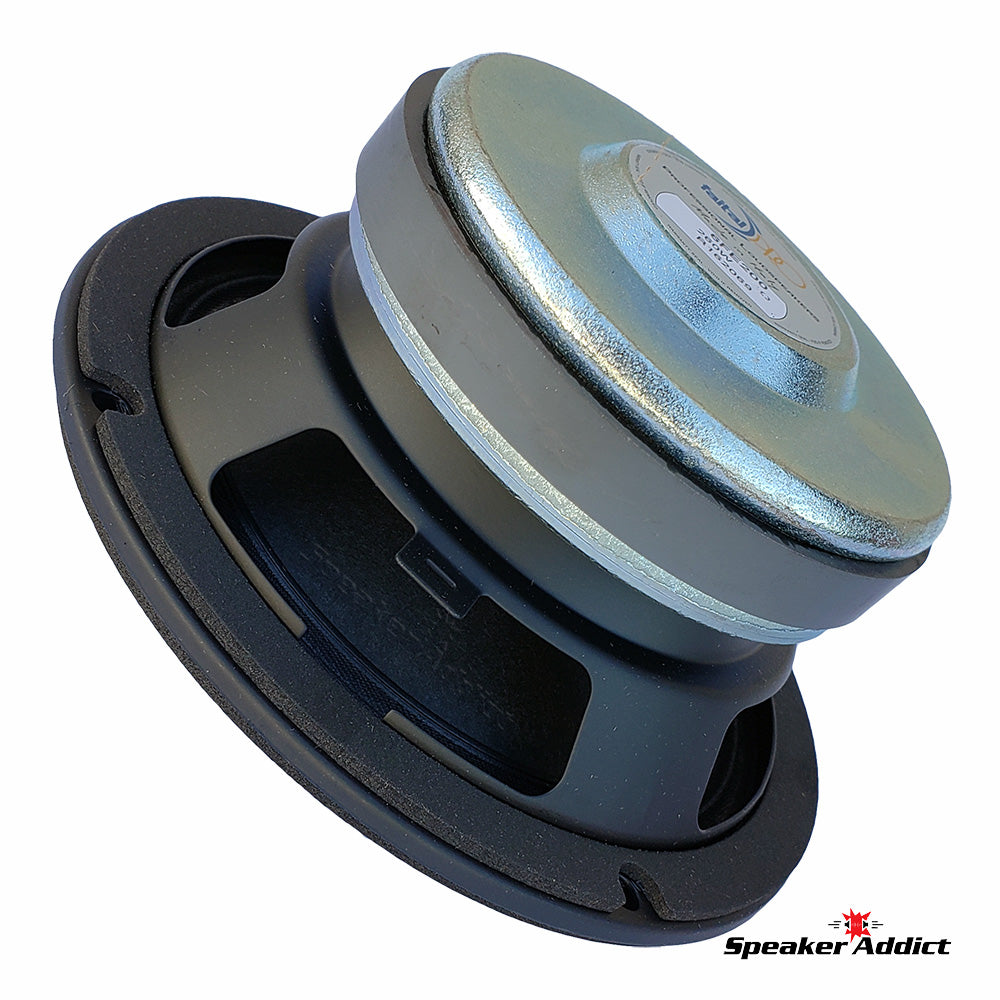

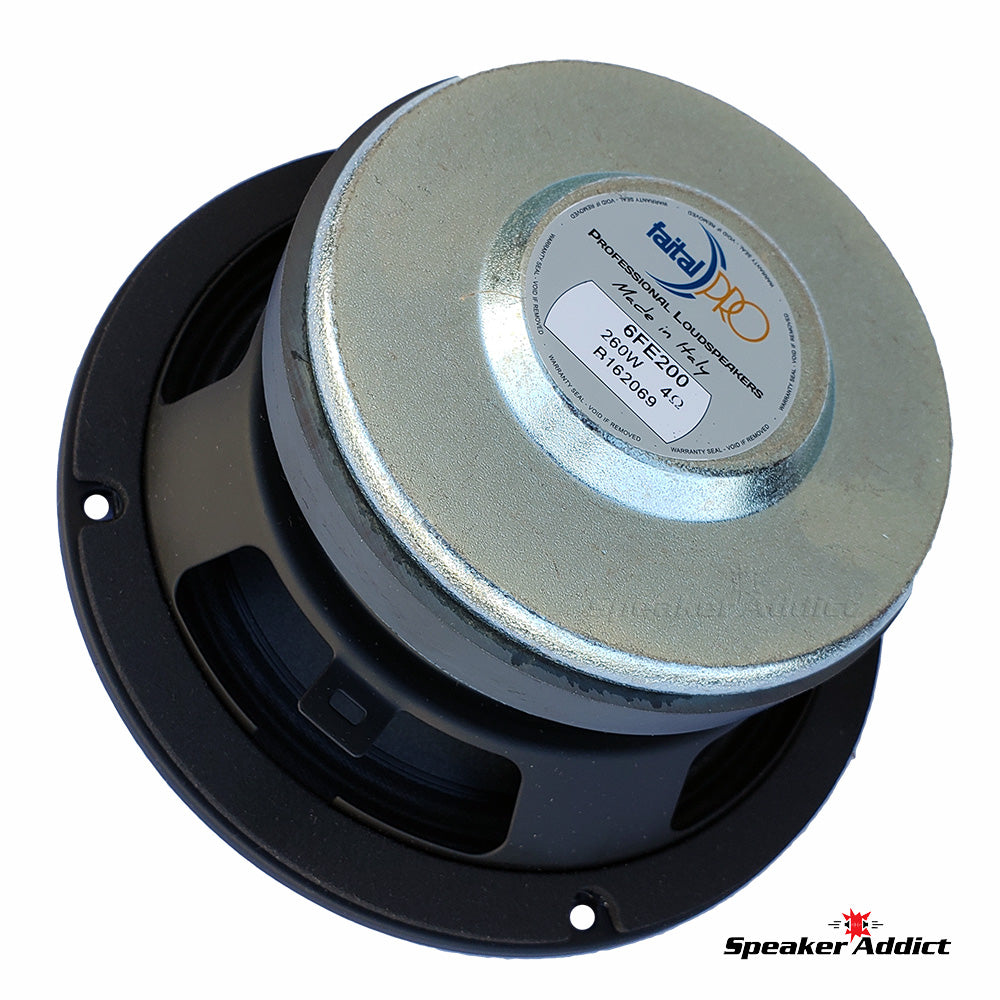

Faital PRO 6FE200 4ohm 6.5 inch Midrange Woofer Voice Speaker 260W 95dB

  • Sale
  • Regular price $ 60.00


Model 6FE200
Nominal Diameter 6.5"
Nominal Impedance 4ohm
RMS Power 130 W
Peak Power (Watts) 260 W
Sensitivity (dB) 95 dB
Max Excursion(Xdam)(Xlim) 10.4 mm
Max Linear Excursion (Xmax) 4.62 mm

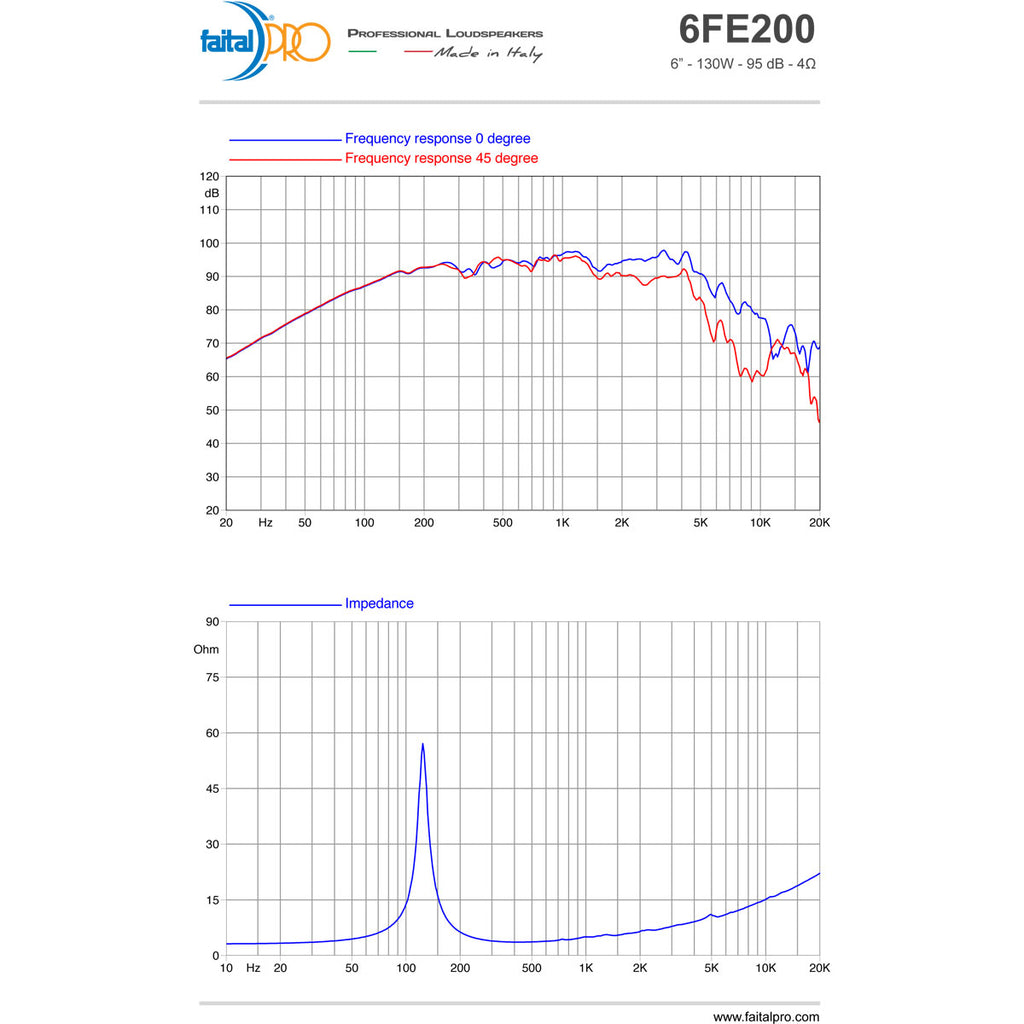

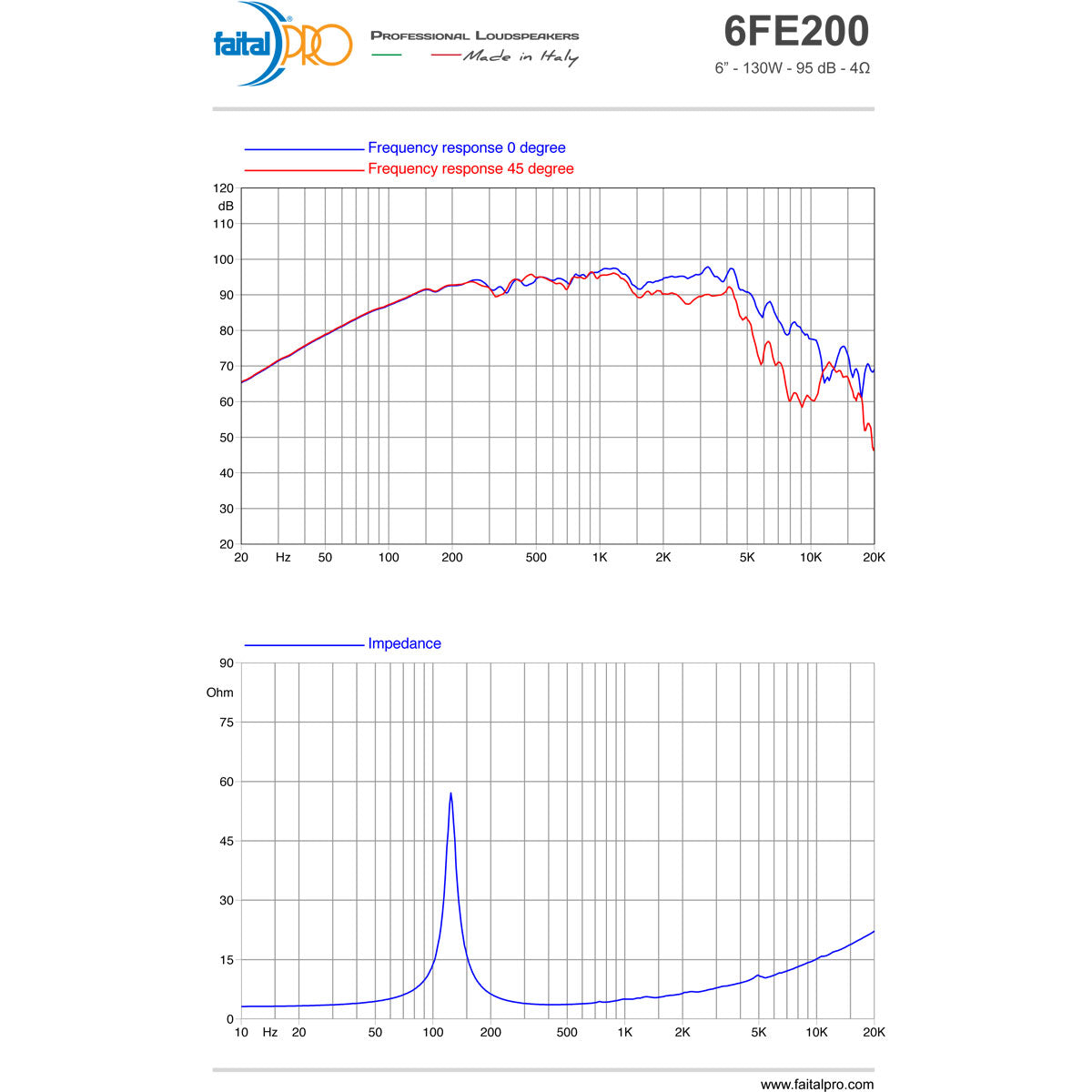

Usable Frequency Range (Hz) 85-6k Hz
Surround Shape M-Roll
Basket / Frame Material Steel
Spider Detail/Material 1x constant height waves
Voice Coil Diameter 1.46"
Voice Coil Former Kapton
Voice Coil Wire Material Aluminum
Voice Coil Winding Depth 11.9 mm
Voice Coil Gap Height 8 mm
Demodulating Ring No
Magnet Material Ferrite
Compliance Equivalent Volume (Vas) 0.13 Ft3
Total Q (Qts) 0.41
Mechanical Q (Qms) 6.2
Electromagnetic Q (Qes) 0.51
Minimum Impedance (Zmin) 3.6ohm
DC Resistance (Re) 3 ohm
Mechanical Resistance (Rms) 2.58 lbs/sec
Surface Area of Cone (Sd) 18.29 in2
Voice Coil Inductance (Le) 0.2 mH
Flux Density 1 T
BL Product(Bl) 7 T-m
Moving Mass Of Diaphragm (Mmd) 9.0 g
Moving Mass(MMs) 9.7 g
Reference Efficiency (No) 0.0135
Mechanical Compliance (Cms) 0.18 mm/N
EBP 235 Hz
Driver Displacement 27 in3

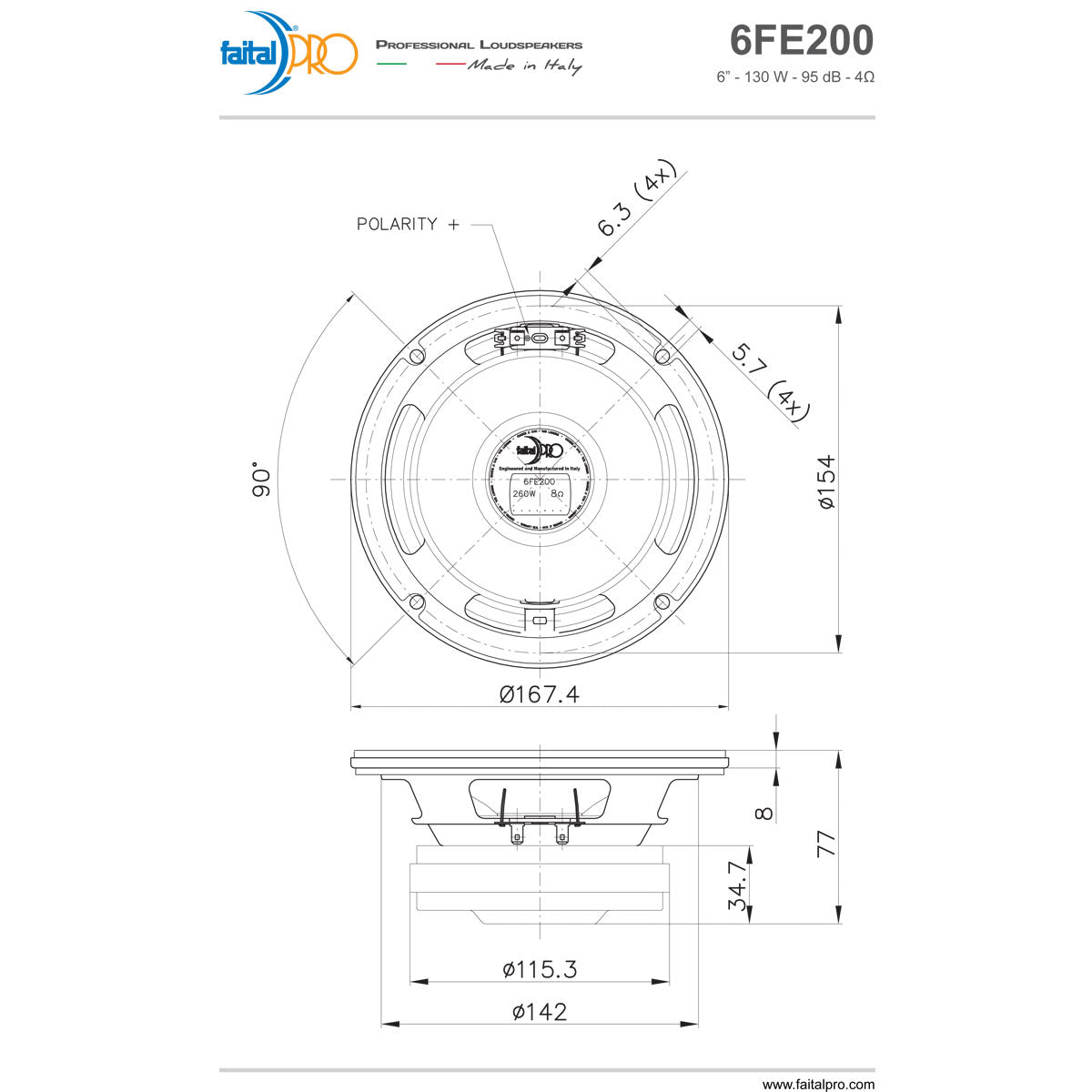

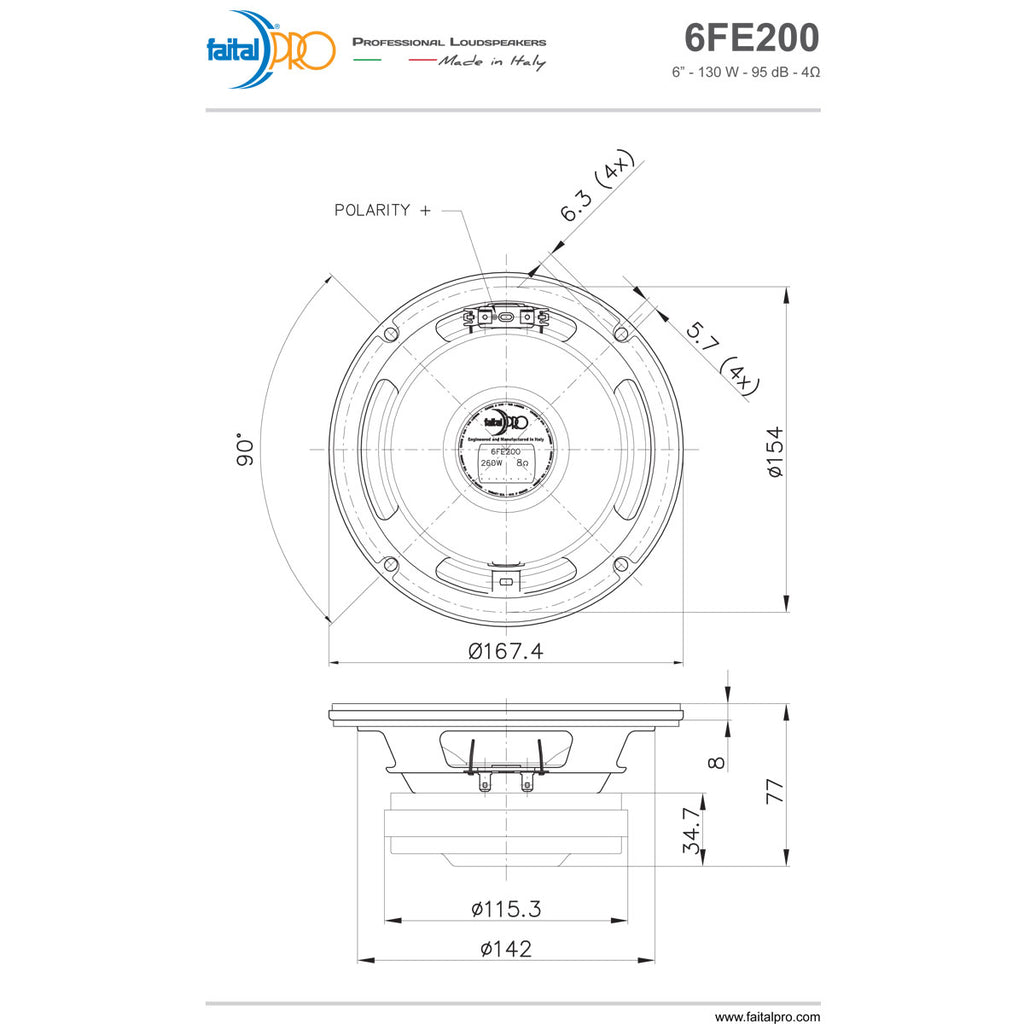

Mounting and Shipping Information
Overall Diameter 6.59"
Baffle Hole Diameter 5.67"
Bolt Circle Diameter 6.06"
Flange and Gasket Thickness 0.31"
Depth 3.03"
Net Weight(lb) 4.8
