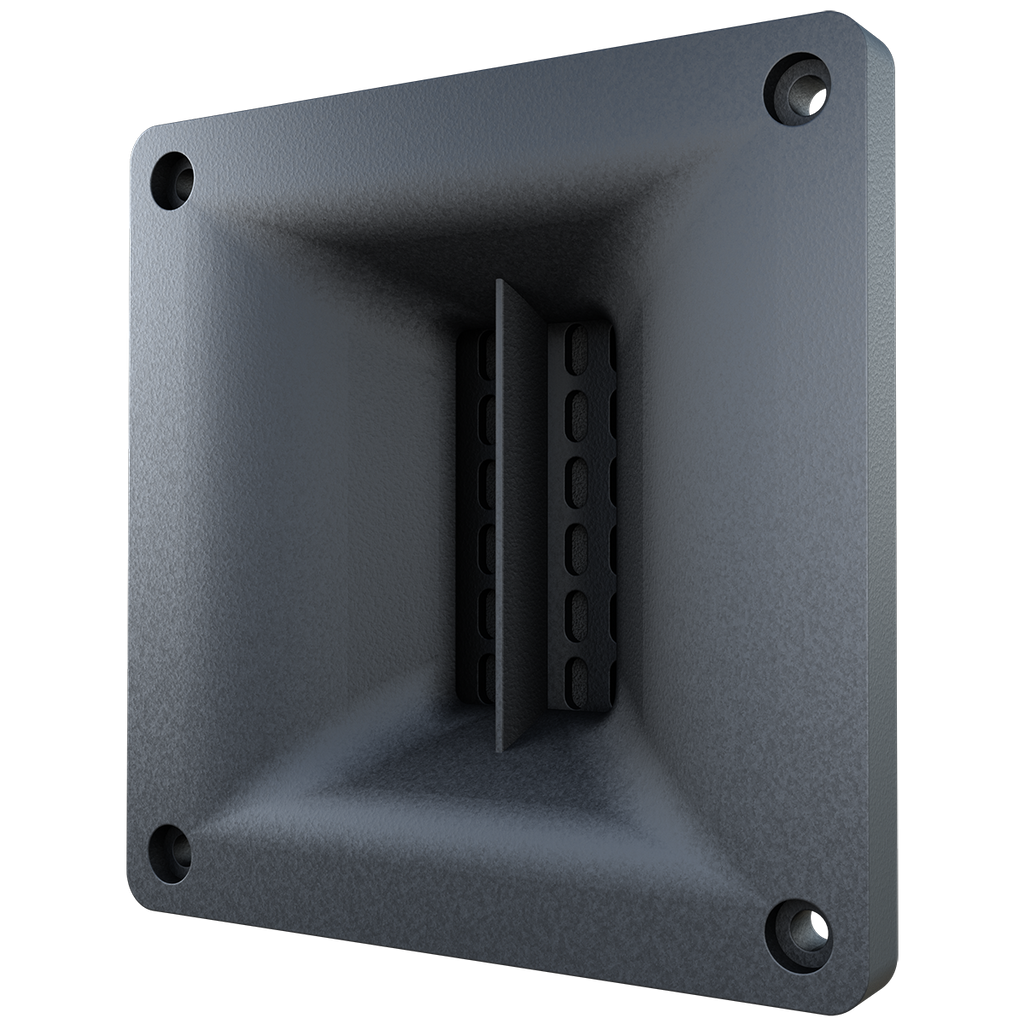

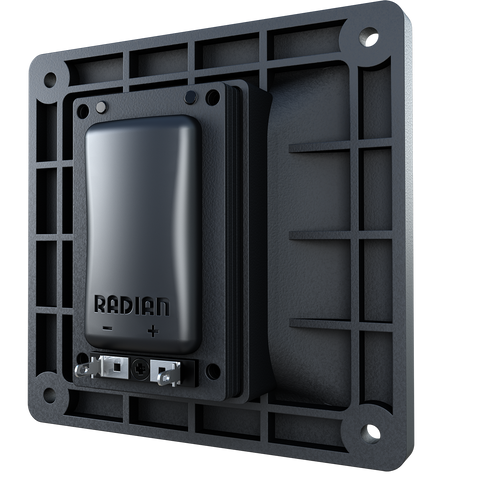

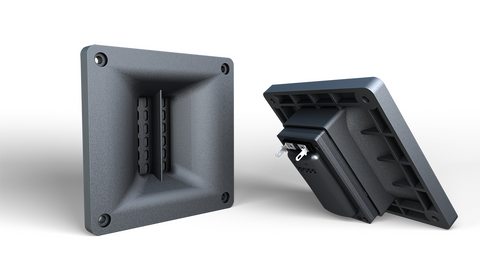

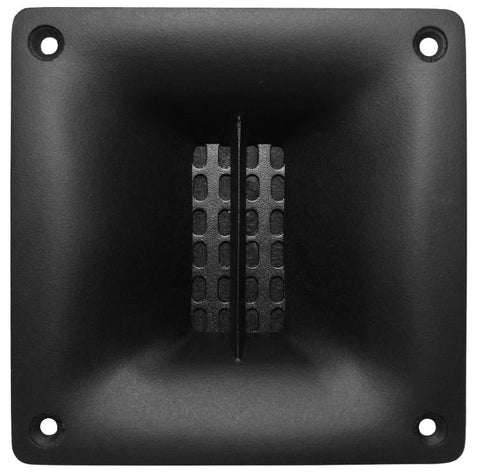

LT2.2-WG HF Waveguide

Sale
Regular price $ 32.00

• Constant Directivity Design in Horizontal Plane With Minimized Boundary Diffraction Effects
• Structurally Reinforced, High Strength Polymer With Excellent Dimensional Stability
• Rotatable at 90 Degrees

Specifications

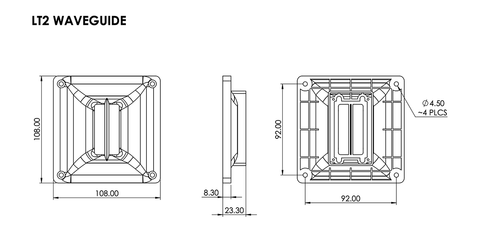

Overall size: 108x108x24.8 mm (4.25x4.25x0.98 in)
Material: Composite polymer

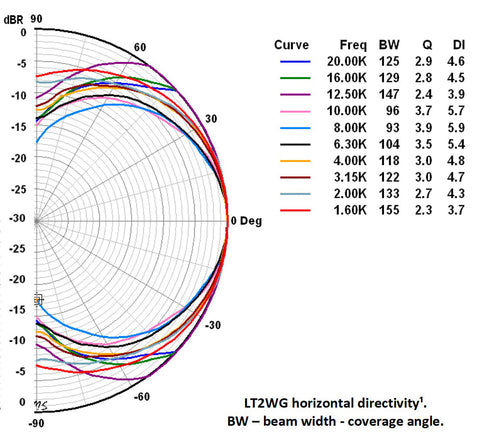

Horizontal coverage: 120°

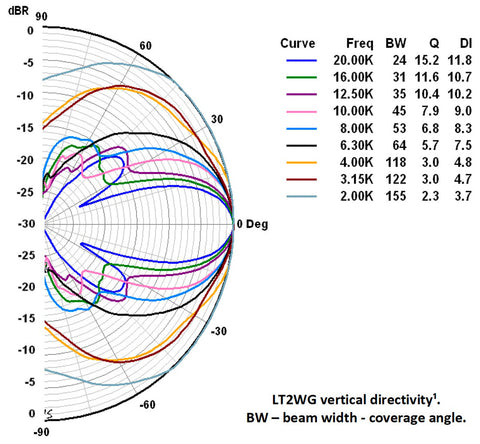

Vertical coverage: 60°
Flange thickness: 9.0 mm (0.35 in)
Net weight: 68 g (0.15 lbs.) https://cdn.shopify.com/s/files/1/0111/0324/0254/files/RADIAN_LT2.2_WEB_SINGLE_PAGES.pdf?v=1700416339
