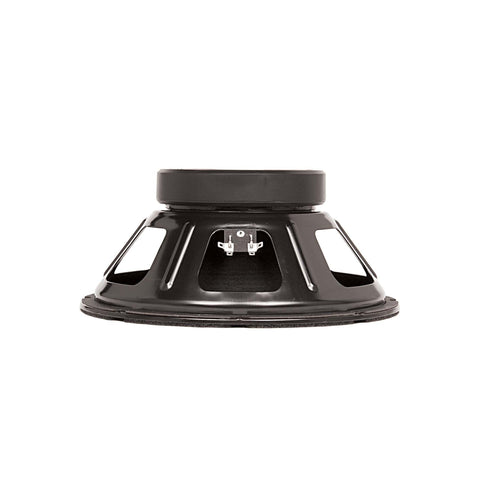

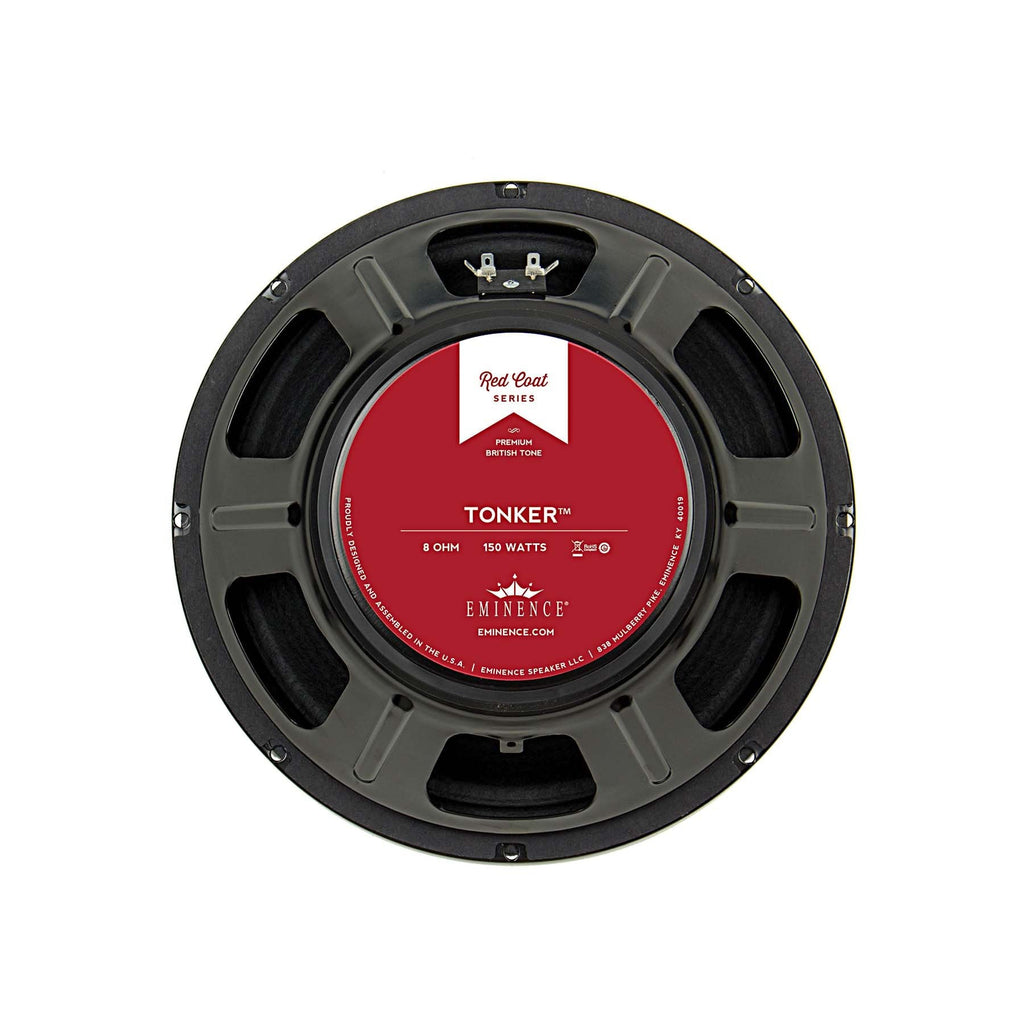

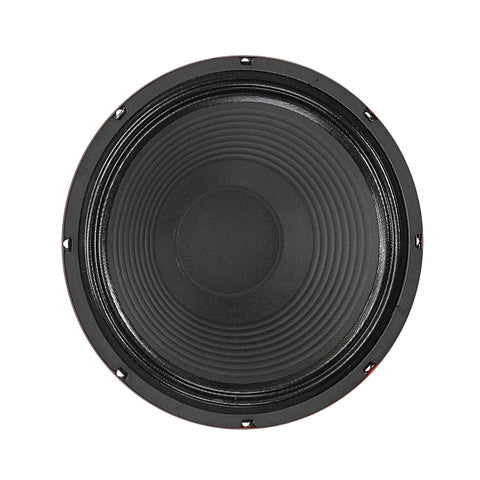

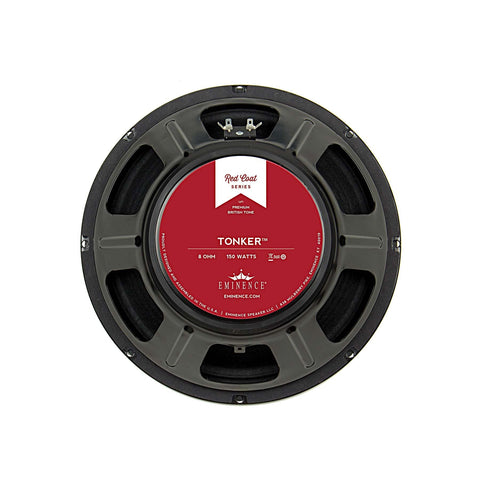

THE TONKER 12" Lead / Rhythm Guitar Speaker- British

The Eminence Tonker guitar speaker brings the pub to any club. A very fat, clean and warm tone through the mid-range, smooth top end. Carries the day, from English Rock to Tele Twang.

Characteristics

Product Overview
Series	Redcoats
Model	The Tonker
Application	12" Open or Closed Back
Configuration	1, 2, or 4 X 12"
Low End Response	Aggressive
Low End Shape	Fat/Round
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Moderate
Volume/Power	Loudest
Overall Coloration*	A very fat, clean and warm tone through the mid-range, smooth top end
Break-up Modes	Medium
Power Range	Up to 150 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	English Rock, Southern Rock, Country (Great with a Telecaster)

Specification
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	89 Hz
Usable Frequency Range	70 Hz - 5 kHz
Sensitivity*	101.5 dB
Magnet Weight	59 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm

Thiele & Small Parameters
Resonant Frequency (fs)	89 Hz
DC Resistance (Re)	7.36 Ω
Coil Inductance (Le)	0.47m H
Mechanical Q (Qms)	10.02
Electromagnetic Q (Qes)	0.54
Total Q (Qts)	0.51
Compliance Equivalent Volume (Vas)	40.6 liters / 1.43 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	41.6 cc
Mechanical Compliance of Suspension (Cms)	0.09 mm/N
BL Product (BL)	17.4 T-M
Diaphragm Mass Inc. Airload (MMs)	36 grams
Efficiency Bandwidth Product (EBP)	181
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	519.5 cm2
Maximum Mechanical Limit (Xlim)	N/A

Mounting Information
Recommended Enclosure Volume
Sealed	Acceptable
Vented	N/a
Driver Volume Displaced	0.079 cu.ft. / 2.25 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.2", 132.1 mm
Net Weight	11.1 lbs, 5.03 kg
Shipping Weight	13.2 lbs, 5.99 kgs

Materials of Construction
Coil Construction	Copper voice coil
Coil Former	Nomex former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap

Download Spec Sheet

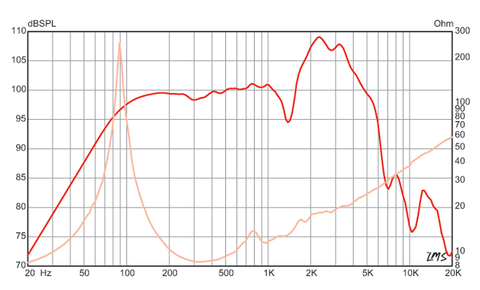

Frequency Response
